MODEL: ST1260
Diameter: 12"
Series: 3
Number of ports: 5

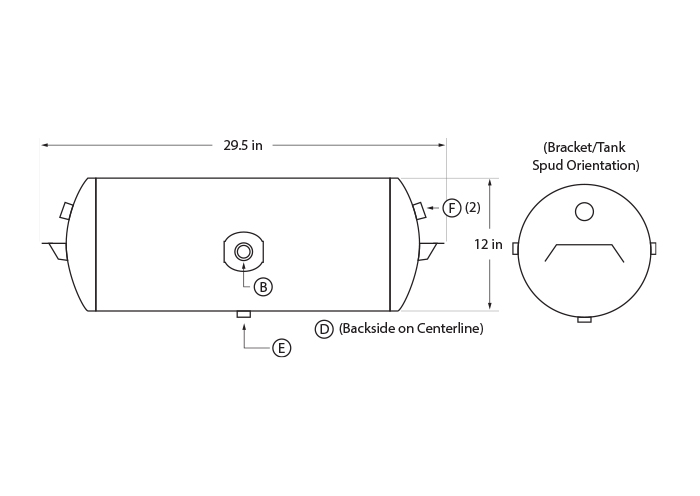

| Port Location and Size | ||||
|---|---|---|---|---|
| Main Port B NPT |
Main Port D NPT |
Drain Port E NPT |
End Port F (2) NPT |
|
| 1/2" | 1/2" | 1/4" | 1/2" | |
Specifications
Minimum Capacity: 2850 CI (cubic inches)
Maximum Working Pressure: 150 psi
Tank Style: Horizontal
Length Mounting Hole to Mounting Hole: 29.5"
Overall Width: 12"
Overall Height: 12"
Standards: SAE J10
