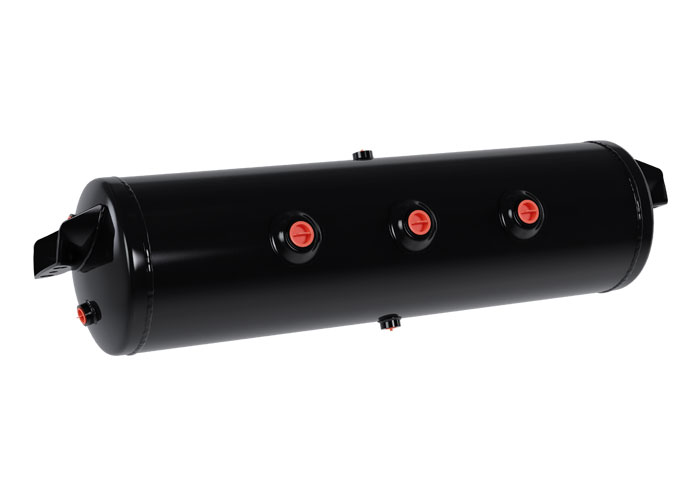

8" Universal Brake Tank

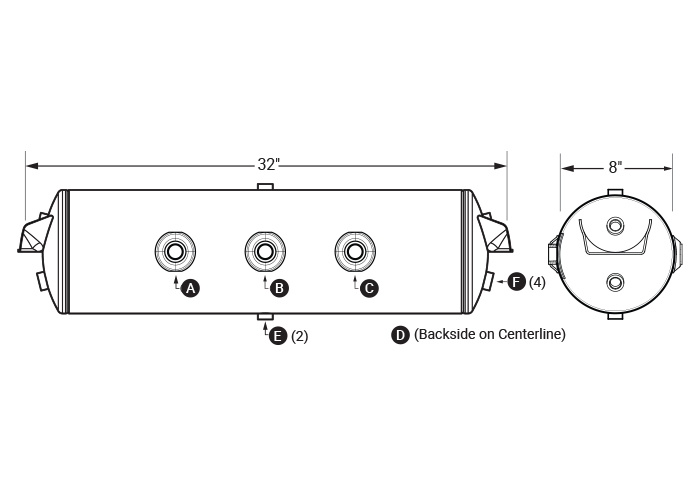

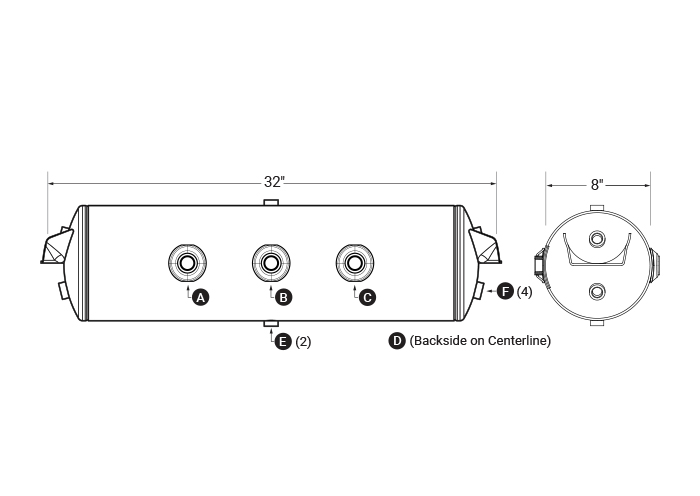

| Port Location and Size | ||||||
|---|---|---|---|---|---|---|
| Main Port A | Main Port B | Main Port C | Main Port D | Drain Port E | End Port F (2) | Top Port P |
| 3/4" | 3/4" | 3/4" | 3/4" | 1/4" | 1/2" (4) | 1/4" |

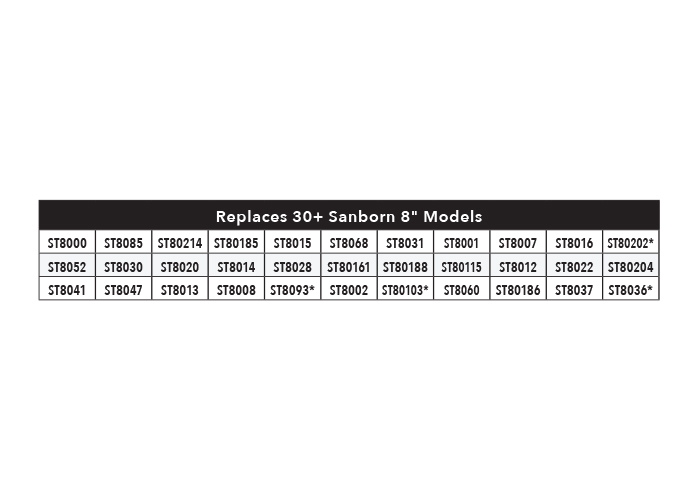

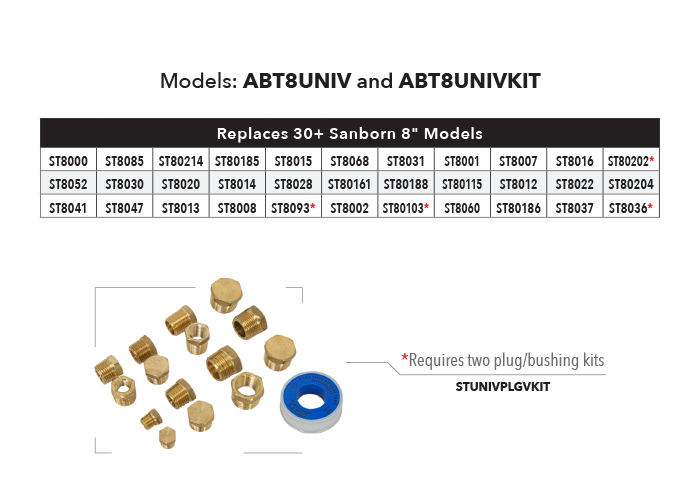

Add more flexibility to your replacement brake tank inventory. Sanborn Universal Brake Tanks allow you to simplify business, minimize inventory, and speed-up repair times. Using just one 8" universal tank along with Sanborn's bushing and plug kits (STUNIVPLGKIT), you can configure over 30 different Sanborn 8" brake tank models.
Specifications
●
Minimum Capacity: 1425 CI (cubic inches)
●
Maximum Working Pressure: 150 psi
