ST1608
MODEL: ST1608
Diameter: 16"
Series: 0
Number of ports: 4

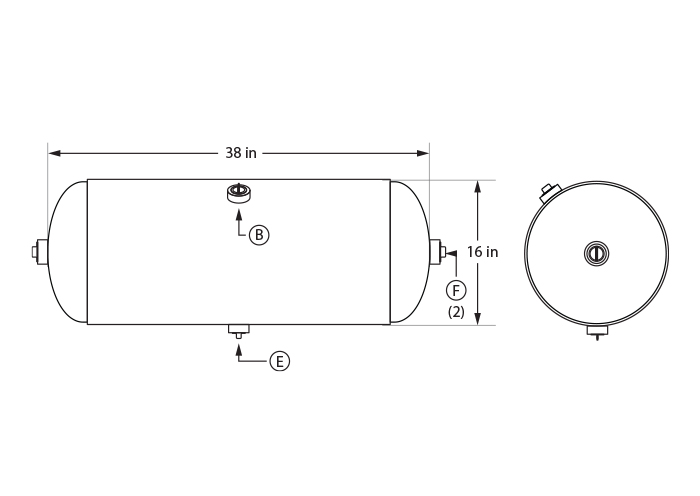

| Port Location and Size | |||
|---|---|---|---|
| Main Port B NPT |
Drain Port E NPT |
End Port F (2) NPT |
|
| 1/2" | 1/2" | 3/4" | |
Specifications
Minimum Capacity: 7000 CI (cubic inches)
Maximum Working Pressure: 150 psi
Tank Style: Horizontal
Length Mounting Hole to Mounting Hole: 38"
Overall Height: 16"
Standards: SAE J10
