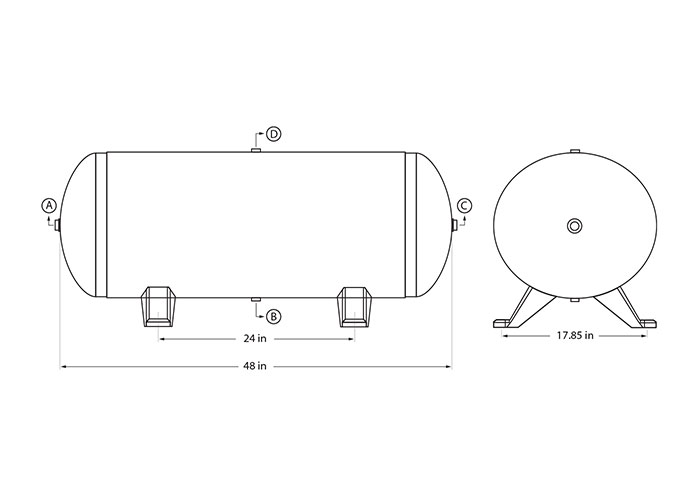

Port Location and Size
End Port A NPT	Drain Port B NPT	End Port C NPT	Top Port D NPT
3/4"	1/4"	3/4"	1/4"

Specifications

Minimum Capacity: 13740 CI (cubic inches)

Maximum Working Pressure: 150 psi

Tank Style: Horizontal

Mounting Type/Style: Bath Tub

Mounting Braket Spacing: 24" x 17.85"

Length Mounting Hole to Mounting Hole: 48"

Overall Width: 20"

Overall Height: 20"

Standards: SAE J10

California Residents: Prop 65 Warning

×

Pro 65 Warning

WARNING: CONTAINS LEAD. May be harmful if eaten or chewed. May generate dust containing lead. Wash hands after use. Keep out of reach of children.

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.
