ST2015
MODEL: ST2015
Diameter: 20"
Series: 0
Number of ports: 4

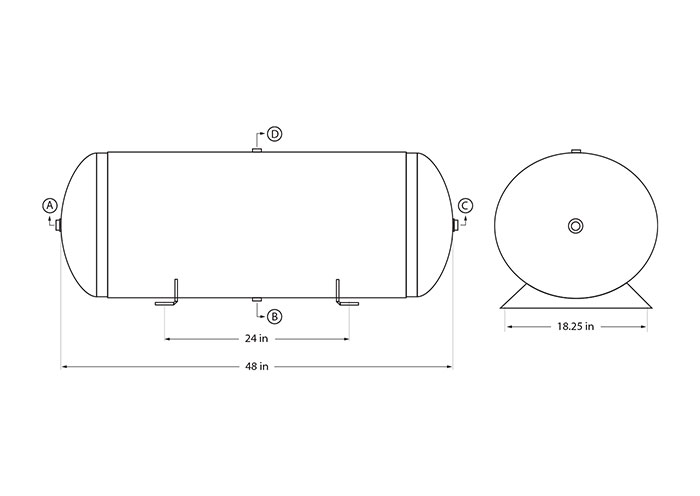

| Port Location and Size | |||
|---|---|---|---|
| End Port A NPT |
Drain Port B NPT |
End Port C NPT |
Top Port D NPT |
| 3/4" | 1/4" | 3/4" | 1/4" |
Specifications
Minimum Capacity: 13740 CI (cubic inches)
Maximum Working Pressure: 150 psi
Tank Style: Horizontal
Mounting Type/Style: L Bracket
Mounting Braket Spacing: 24" x 18.25"
Length Mounting Hole to Mounting Hole: 48"
Overall Width: 20"
Overall Height: 20"
Standards: SAE J10
