MODEL: ST8022
Diameter: 8"
Series: 4
Number of ports: 5

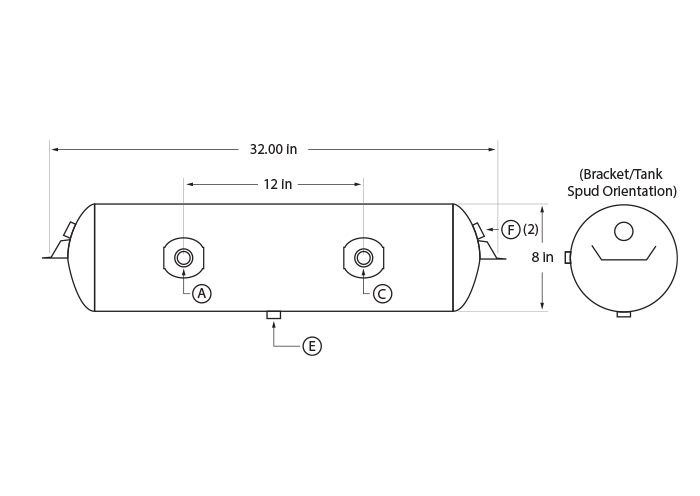

| Port Location and Size | ||||
|---|---|---|---|---|
| Main Port A NPT |
Main Port C NPT |
Drain Port E NPT |
End Port F (2) NPT |
|
| 3/4" | 3/4" | 1/4" | 3/8" | |
Specifications
Minimum Capacity: 1425 CI (cubic inches)
Maximum Working Pressure: 150 psi
Tank Style: Horizontal
Length Mounting Hole to Mounting Hole: 32"
Overall Width: 8"
Overall Height: 8"
Standards: SAE J10
California Residents:
Pro 65 Warning
WARNING: CONTAINS LEAD. May be harmful if eaten or chewed. May generate dust containing lead. Wash hands after use. Keep out of reach of children.
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.
