MODEL: ST9572
Diameter: 9.5"
Series: 1
Number of ports: 4

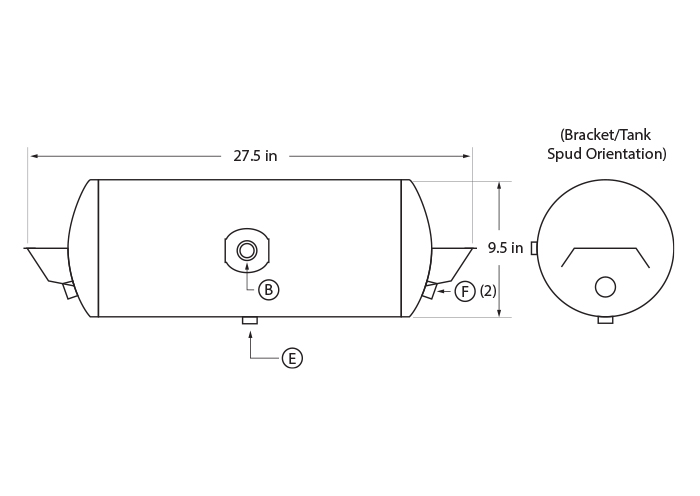

| Port Location and Size | |||
|---|---|---|---|
| Main Port B NPT |
Drain Port E NPT |
End Port F (2) NPT |
|
| 3/4" | 3/8" | 3/8" | |
Specifications
Minimum Capacity: 1425 CI (cubic inches)
Maximum Working Pressure: 150 psi
Tank Style: Horizontal
Length Mounting Hole to Mounting Hole: 27.5"
Overall Width: 9.5"
Overall Height: 9.5"
Standards: SAE J10
